Influent
Produced Water
Untreated water enters the treatment system.
Treatment Process
A controlled pathway to cleaner water
EC-AOP treatment, separation, polishing and verification in one structured process.
Treatment Process Overview
A structured treatment pathway from produced water to final water quality
The Lai Pulo treatment process integrates primary electro-catalytic treatment, solids separation, membrane polishing and verification in a controlled sequence configured around the incoming water and the required final-water quality.
Primary Treatment
EC-AOP
Breaks down hydrocarbons and captures suspended contaminants.
Separation
Floc Tank / DAF
Removes flocculated solids generated during primary treatment.
Final Polishing
Reverse Osmosis
Reduces dissolved salts and remaining contaminants where required.
Final Water
Final Water Quality
Water quality is matched to the required project target.
Process Configuration
The final treatment train is selected according to influent chemistry, contaminant loading, flow rate and final-water requirements.
Treatment Basis
01
02
03
04

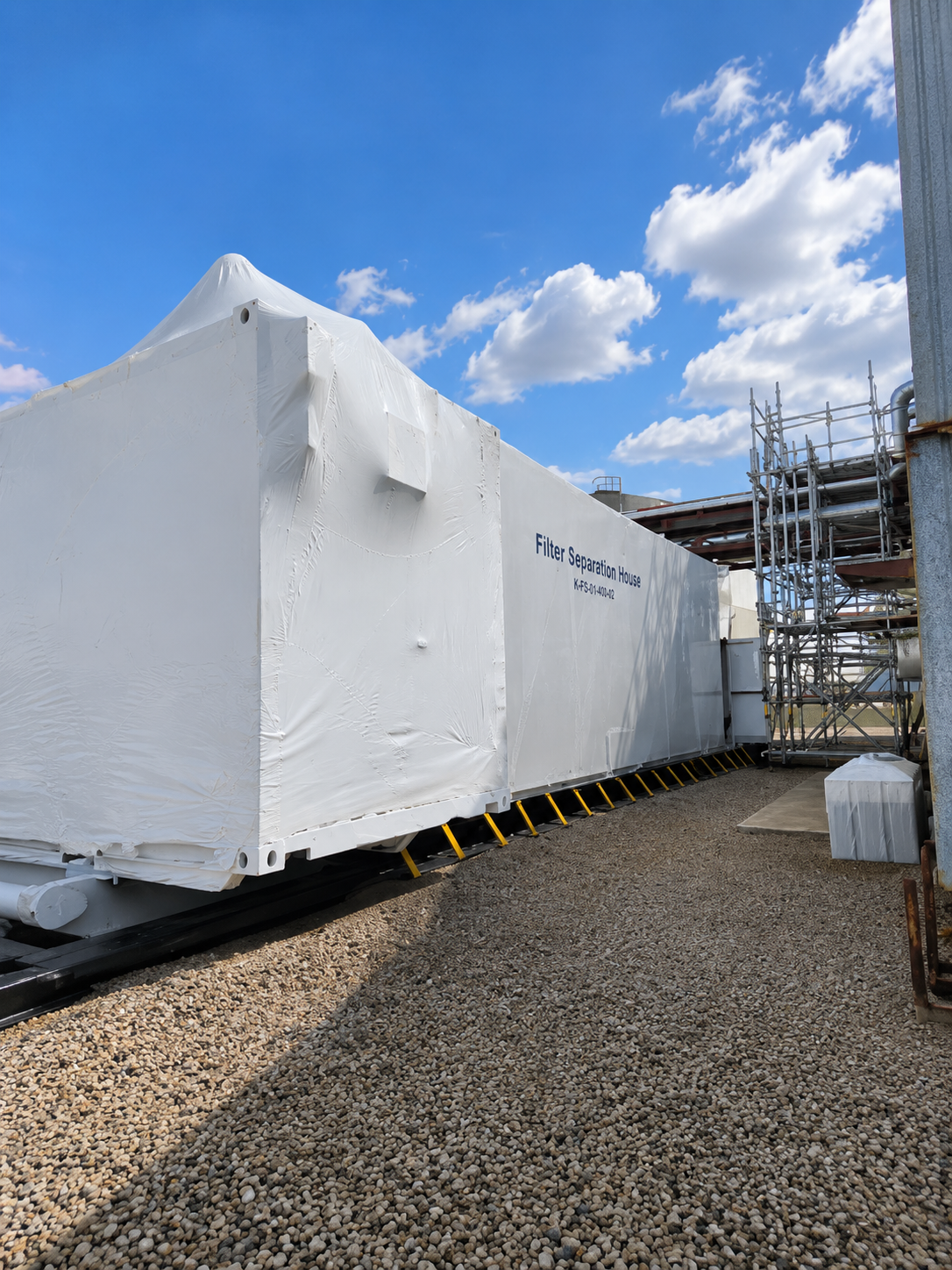

Configured around the water, site and required outcome
The treatment process is selected and configured according to project conditions rather than applied as a fixed arrangement.
Fluid Chemistry
System specifications are matched to the produced-water composition.
Flow Rate
Equipment capacity is configured for the required treatment volume.
Site Space
Skid-mounted systems support compact and constrained locations.
Final-Water Target
Polishing is selected according to final-water quality requirements.

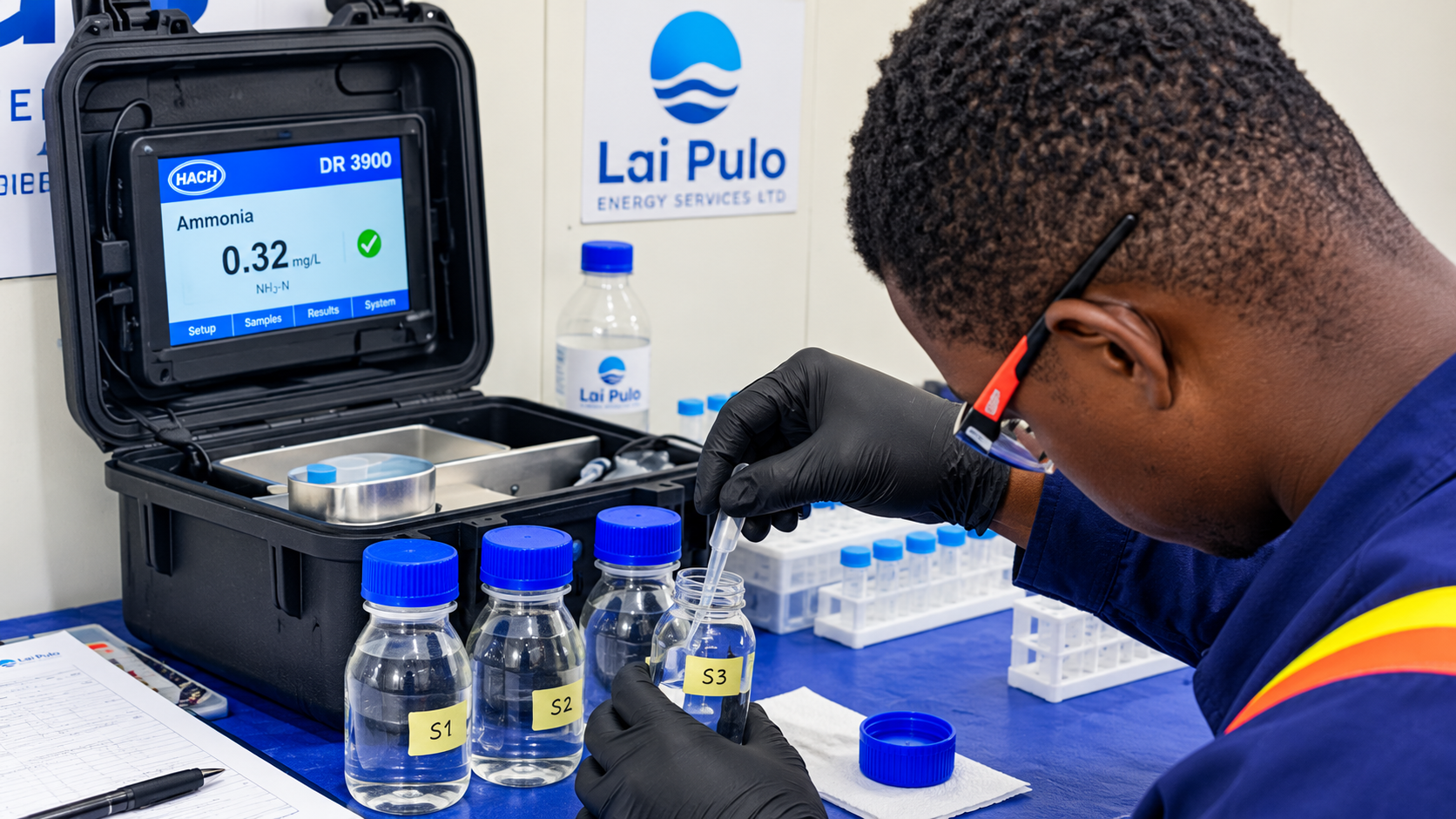

Monitoring · Sampling · Testing
Process performance monitored at defined treatment stages
Field measurements and documented sampling support treatment control, technical review and laboratory verification.
Field Measurements
Process Control
01
Monitor
→
02
Sample
→
03
Test
→
04
Verify
Technical Record
Operating observations, field measurements and sample results are documented throughout the treatment process.
View Case Study
Final Water Pathway
Treatment completed according to the required water-quality target
Final water quality is matched to regulatory requirements, operating needs and the required final-water quality.
